Q3 Msata Hard Drive 240GB Internal 3D Nand Flash MSATA III Interface 510MB/S Rea

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATAQ3-240
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:



Interface Type: MSATA Capacity: 240GB
Nand Flash: 3D Nand Certificate: CE,ROHS,FCC
Storage Temperature: -40℃--85℃ Operating Temperature: -20℃--70℃
Dimension: 50*30*3.5mm Warranty: 3 Years

Q3 msata ssd 240GB Internal mSATA Drive Solid State Drive for Mini Pc Notebooks Tablets Pc

  • Capacity: 240GB, Interface : mSATA III (6.0 Gbps)

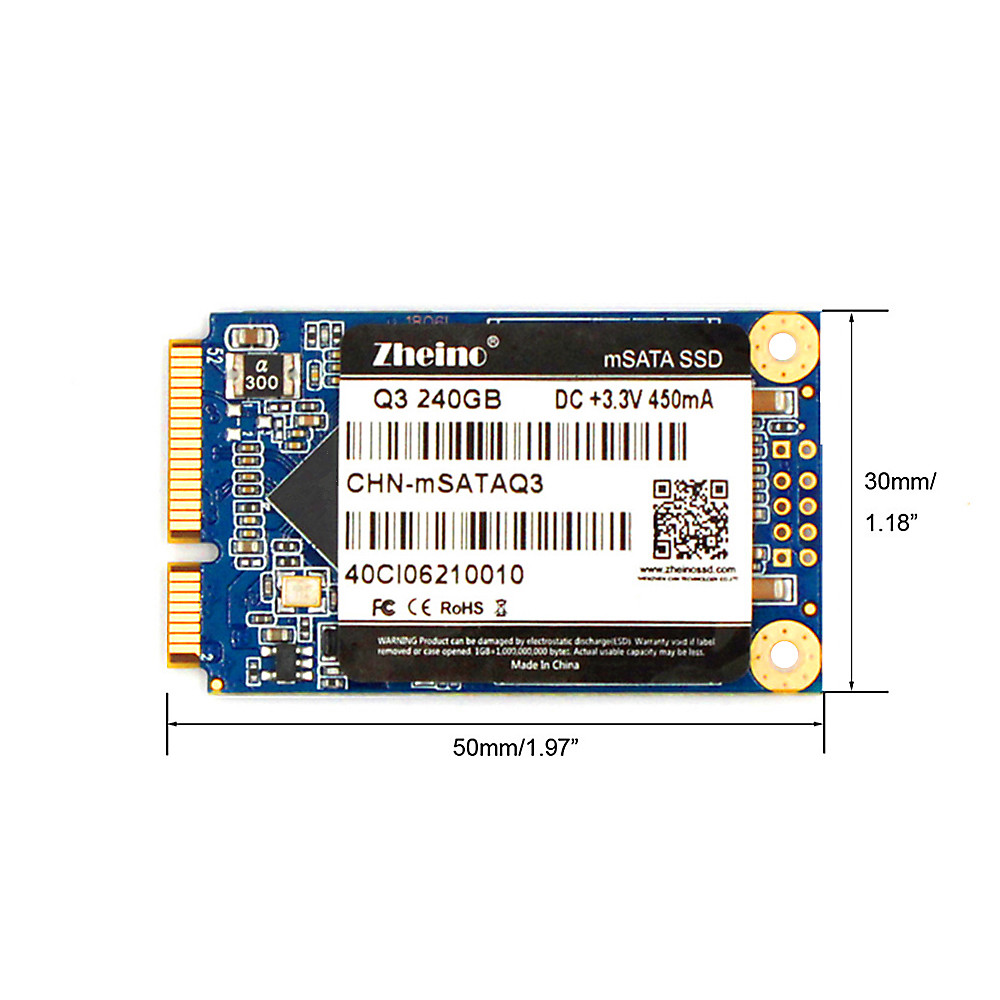

  • Dimension: 1.18in X 1.96in X 0.14in / 30mm X 50mm X 3.5mm
  • NAND Flash: 3D Nand
  • Read/write speed: 510MB/s, 420MB/s
  • Warranty:3 Years
Item Q3 mSATA SSD 240GB
Product Model CHN-mSATAQ3-240
Interface MSATA III
Flash 3D Nand
SSD Capacity 120GB
Sequential Read Read:510MB/S
Sequential Write Write:420MB/S
ECC BCH ECC 66bits/1KB
Operating Voltage +3.3V( ±5%)
Power Consumption 0.3W(idle)
(Varies by density) 0.57W(active)
Operating Temperature -20°C to 70°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95%
MTBF 2,000,000 Hours
Shock 50G,11ms, half-sine wave
Vibration 3.1G(2-500Hz)
Dimension (mm) mSATA:51*30*4mm
Weight ≤10g

Q3 Msata Hard Drive 240GB Internal 3D Nand Flash MSATA III Interface 510MB/S Read

Warm tips
Because there is a different storage-algorithm between manufacture and windows system/other prevailing computer’s system, the actual capacity will be slightly smaller than nominal capacity.
Storage device conversion formula: nominal capacity X93% = actual capacity
