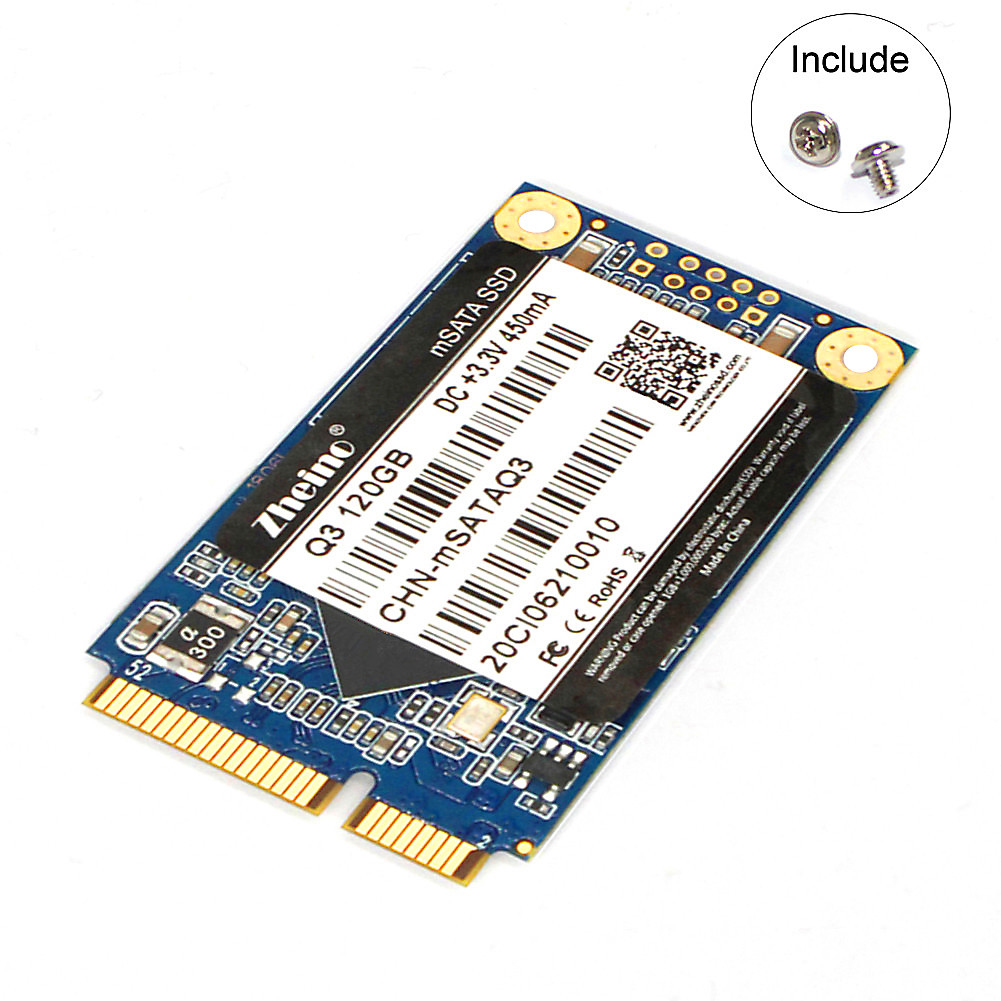

120GB SSD MSATA Internal Q3 MSATA Drive Solid State Drive 3 Years Warranty

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATAQ3-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:



Interface Type: MSATA Capacity: 120GB
MTBF: More Than 2,000,000 Hours Certificate: CE,ROHS,FCC
Storage Temperature: -40℃--85℃ Operating Temperature: -20℃--70℃
Dimension: 50*30*3.5mm Warranty: 3 Years

120GB msata ssd Internal Q3 mSATA Drive Solid State Drive for Mini Pc Notebooks Tablets Pc

  •  mSATA interface - fully compliant with industry standard, easy to fit, guaranteed to work
  •  NAND Flash memory based - shock-resistant with low power consumption
  •  Supports Intel's SRT - combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
  •  Supports S.M.A.R.T. - monitors the status of your drive
  •  Supports TRIM - maintains maximum performance on compatible operating systems
  •  Automatic encryption (AES128-bit) Password at the drive level ensures secure data protection
  •  Sequential Read/Write: 520MB/s /300MB/s
  •  Guaranteed - three-year warranty and free technical support
Product Model CHN-mSATAQ3-120
Interface MSATA III
Flash 3D Nand
SSD Capacity 120GB
Sequential Read Read:500MB/S
Sequential Write Write:350MB/S
ECC BCH ECC 66bits/1KB
Operating Voltage +3.3V( ±5%)
Power Consumption 0.3W(idle)
(Varies by density) 0.57W(active)
Operating Temperature -20°C to 70°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95%
MTBF 2,000,000 Hours
Shock 50G,11ms, half-sine wave
Vibration 3.1G(2-500Hz)

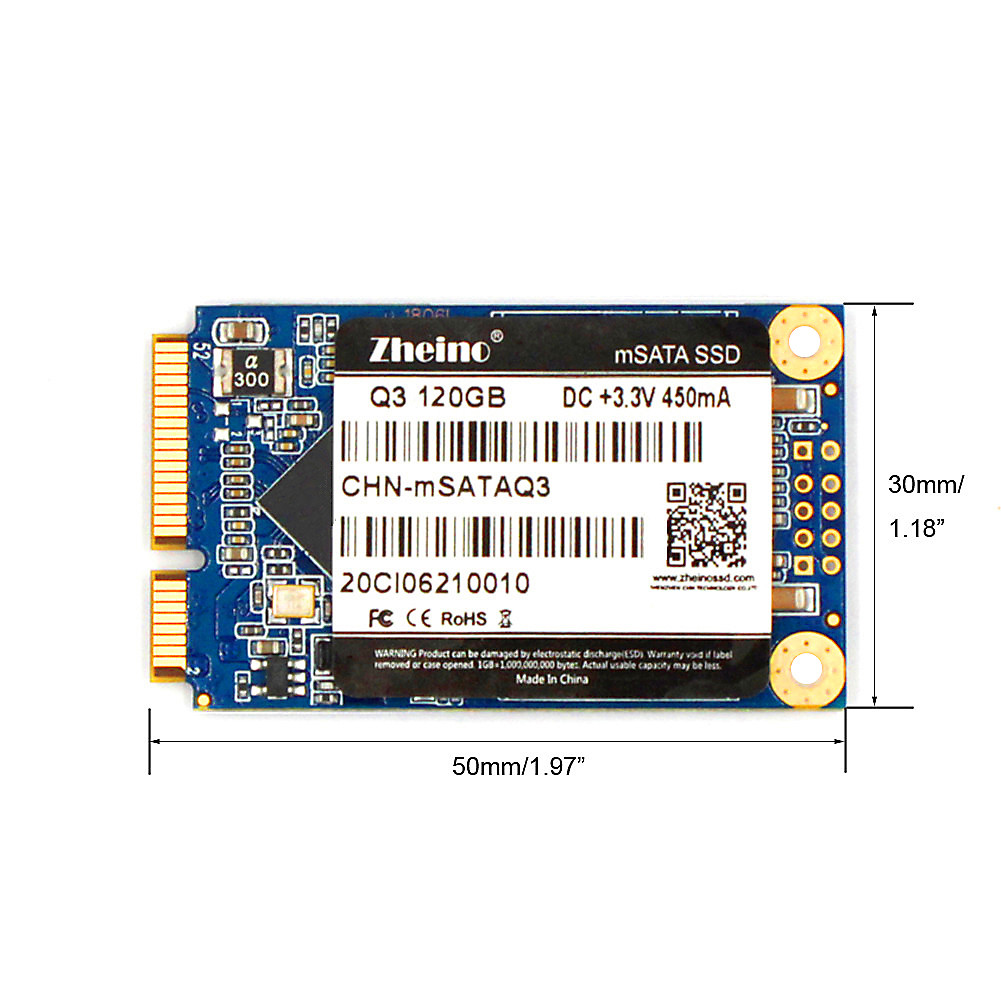

Dimension (mm) mSATA:51*30*4mm
Weight ≤10g


120GB SSD MSATA Internal Q3 MSATA Drive Solid State Drive 3 Years Warranty


Warm tips
Because there is a different storage-algorithm between manufacture and windows system/other prevailing computer’s system, the actual capacity will be slightly smaller than nominal capacity.
Storage device conversion formula: nominal capacity X93% = actual capacity
