2 Channel Disk On Module Dom , RoHS Dom Hard Disk 3 Year Warranty

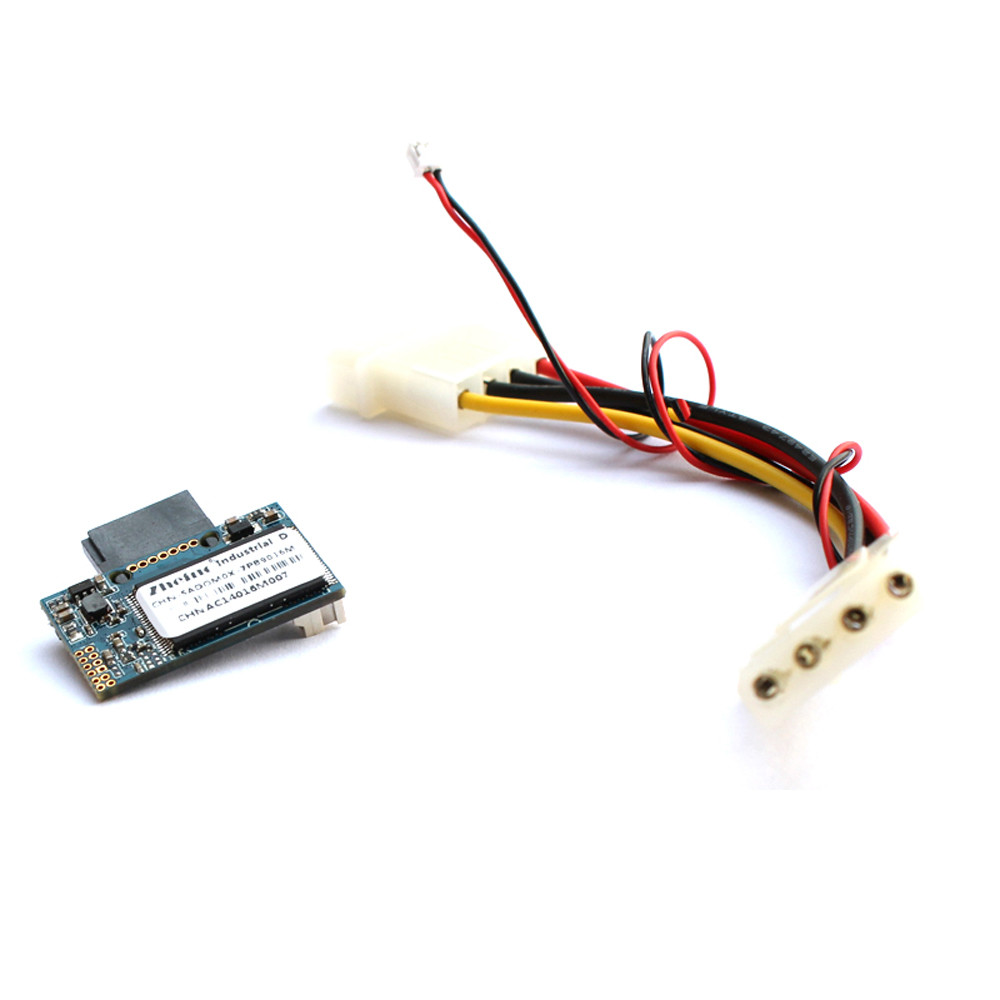

DOM Series: Disk On Module, is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.
DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multiword DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Microsoft Windows series, Mac OS, and Unix versions.

Best boot drive solution for server and embedded system
SATA 6Gb/s interface
High IOPS to reduce boot up timing
Built-in Pin 7 power supply
Dimension: 35mm(L) X 18mm(W)X8mm(H)

Features:
- Best boot drive solution for server and embedded system
- SATA 6Gb/s interface
- High IOPS to reduce boot up timing
- Built-in Pin 7 power supply
- Intelligent error recovery system
- Zero mechanical interference
- Anti-vibration mechanical design
- iSMART disk health monitoring
- Innovative Firmware Algorithm

Specification:
Model:CHN-SADOMOX-7PB9016M
Capacity: 16GB
Intereface: SATA III
Form Factor: 7-PIN SATA
Flash Type: MLC
Dimension: 35mm(L) X 18mm(W)X8mm(H)
Storage Temperature: -55°C ~ +95°C
MTBF: 3 million hours
Warranty: 3 years warranty
