Model:
|
CHN-SADOMOX-7PB9064M
|
NAND Flash:
|
MLC
|
|
Channel:
|
1 Or 2
|
Warranty:
|
3 Years
|
|
Operating Temperature:
|
0℃--70℃
|
MTBF:
|
More Than 2,000,000 Hours
|
|
Interface:
|
SATA 6Gb/s
|
Dimension:
|
35mm(L) X 18mm(W)X8mm(H)
|

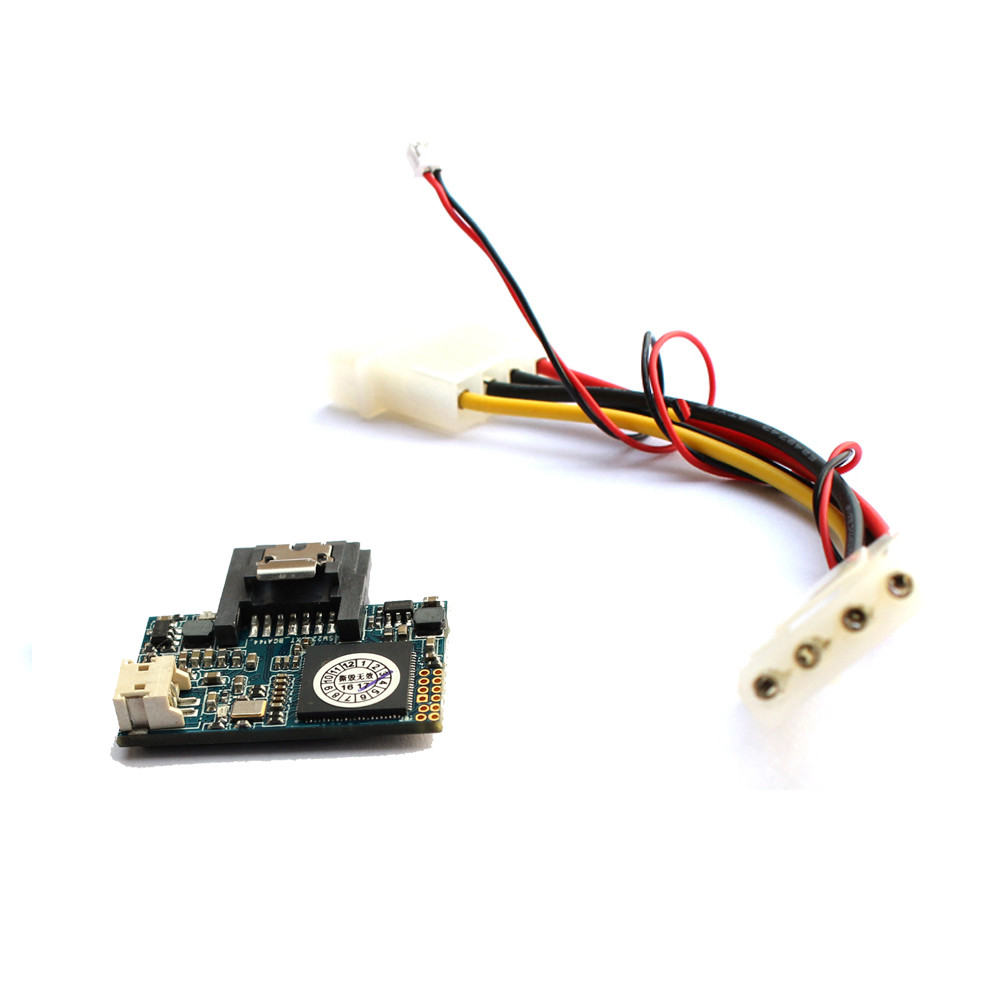

SATA Dom 64GB Dual Channel Industrial Disk On Module 90 degree Internal SATA III Dom Module FCC
-
Best boot drive solution for server and embedded system
-
SATA 6Gb/s interface
-
High IOPS to reduce boot up timing
-
Built-in Pin 7 power supply
-
Dimension: 35mm(L) X 18mm(W)X8mm(H)
|
Specification
|
|
|
Model
|
CHN-SADOMOX-7PB9064M
|
|
Capacity
|
64GB
|
|
Intereface
|
SATA III
|
|
Form Factor
|
7-PIN SATA
|
|
Flash Type
|
MLC
|
|
Dimension
|
35mm(L) X 18mm(W)X8mm(H)
|
|
Storage Temperature
|
-55°C ~ +95°C
|
|
MTBF
|
3 million hours
|
|
Warranty
|
3 years warranty
|
SATA3 Serial DOM Disk is a High Performance Embedded Disk that Designed to replace Traditional Mechanical HDD can be Inserted into Standard 7PIN SATA interface. SATA3 Serial DOM Disk have a Small Control Chip that Manage Firmware and transfer DATA through SATA 7PIN interface,no need Additional Host Software. SATA3 Serial DOM Disk work Input Voltage is 5V which Provides New Scalability Function such as More Cost-Effective Design,better Performance,improving Reliability,and make it very suitable for Embedded Storage Areas. SATA DOM Support Standard SATA Protocol,as high as Mode-4,Multiword DMA Mode-2,and Ultra DMA Mode-6,compatible with All Major Operating Systems on the market,such as Microsoft’s Windows Series,Max Operating System,and Unix Version. SATA DOM Peculiar Characteristics:Intelligent Power Recovery,Fast Clearance,S.M.A.R.T.,Advanced Equalization Loss Algorithm Technology,Security Zone,as well as Enhanced DATA Integrity.Goldendisk modularized SATA DOM SSD is a Multifunctional Device Providing Customers’ with DATA Safety.
