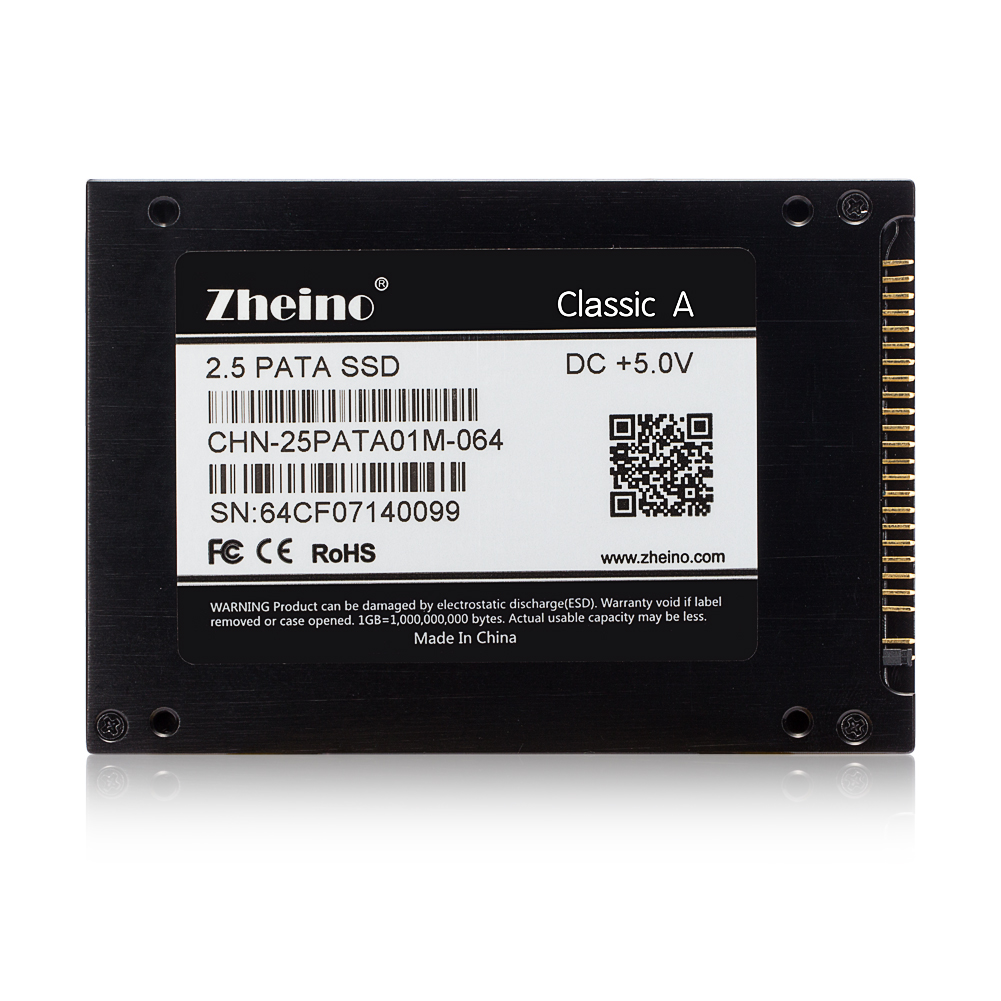

High Speed 64G IDE 2.5 SSD SM2236 Controller For Laptop 100 * 70 * 5mm
Description of Zheino 2.5 inch IDE SSD
Fantastic transfer speeds with the IDE interface SSD to open a application faster more than HDD.
It is one of the lightest and thinnest SSD with dimension: 100*70*5mm/3.9*2.7*0.3 inches to fit in a wider array of systems.
Work Platform: Laptop, Notebook ,Desktop and other devices with IDE interface.
Compatible with:
Brand
|
Model
|
IBM
|
X31,X32,X22, T41,T43,T43P, R51,V80,R60
|
Lenovo
|
V80
|
Asus
|
A6JC,A8JA
|
HP
|
V2000, HP NC4010 PM755
|
APPLE
|
G4
|
DELL
|
D610
|
It will be damaged by misusing, So keep it away from water, dirt, and high temperature.
Specification:
Capacity: 16GB/32GB/64GB/128GB
Size: 2.5 inch
Model Number: CHN-25PATA01M-064
NAND Flash:2D MLC
Read Speed:108MB/s
Write Speed:59MB/s
4KB Random Read IOPS:2412-3000
4KB Random Write IOPS:143-310
input Voltage:5V
Idle:0.32-0.38
Active:1.55-1.62
Write Endurance: 3000 P/E cycles
Read Endurance: --
Data Retention: More than ten years
MTBF: 3 million hours
ECC: Hardware BCH ECC capable of correcting errors up to 72-bit/1KB
Working Temperature: 0~70
Storage Temperature: -40~85
Controller: SMI2236 for best performance, value and reliability
Shell made of Aluminum Alloy NOT plastic
Warranty: 3 Years
