PATA Ide Interface Zheino 40 Pin Vertical Socket For Mini PC

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-PADOM40VS01M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:


INQUIRY

Description

Interface: IDE/PATA Capacity: 8GB
Sustained Read: 100 MB/s Sustained Write: 40 MB/s
Nand Flash Memory: SLC Warranty: 3 Years

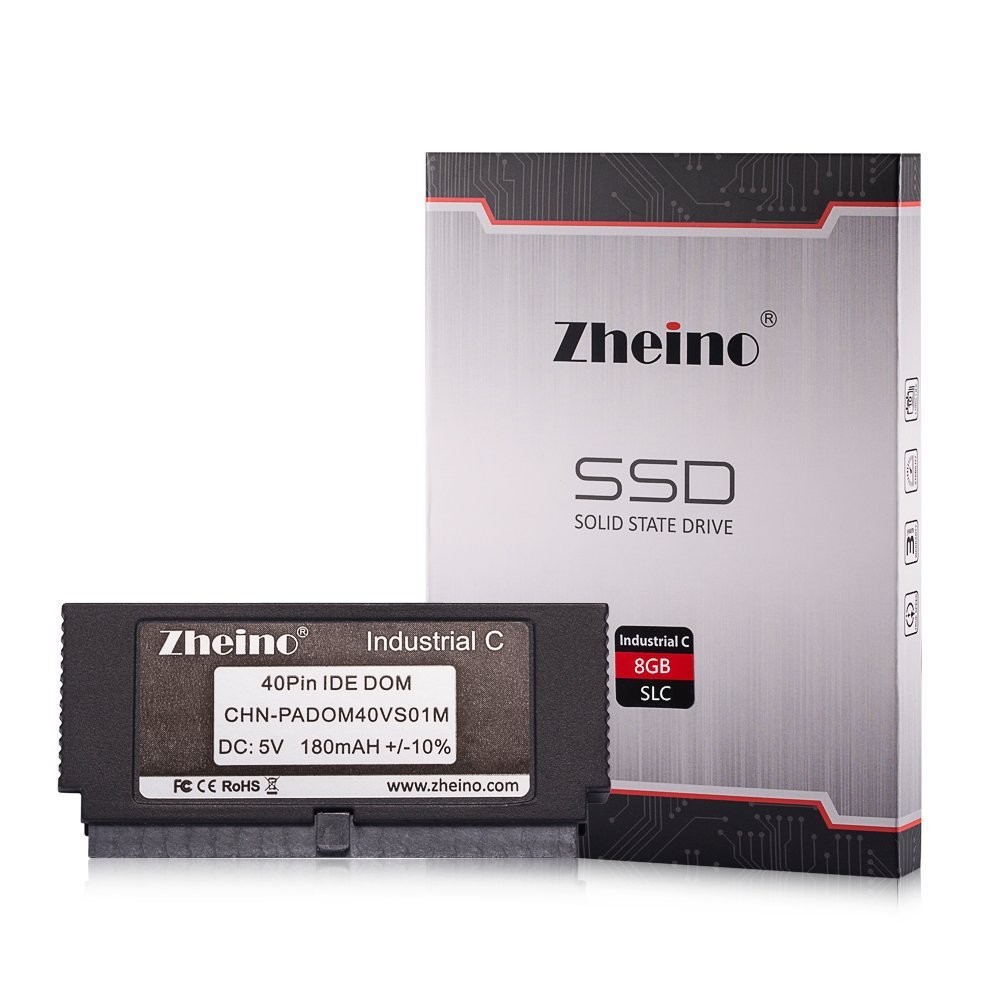

PATA Ide Interface Zheino 40 Pin Vertical Socket For Mini PC


Model CHN-PADOM40VS01M-008S
General 40pin Vertical Form Factor + Socket SLC
Interface PATA / IDE
Performance Capacity 8GB
Read Supported 100MB / S
Write Sustained 40MB / S

Random IOPS
Random 4KB Read IOPS 3.2K
Write IOPS Random 4KB 0.4K
Access 0.2ms of time
NAND Flash NAND Flash Storage Media


DOM Series: Disk On Module, is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.


DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multiword DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Microsoft Windows series, Mac OS, and Unix versions.
