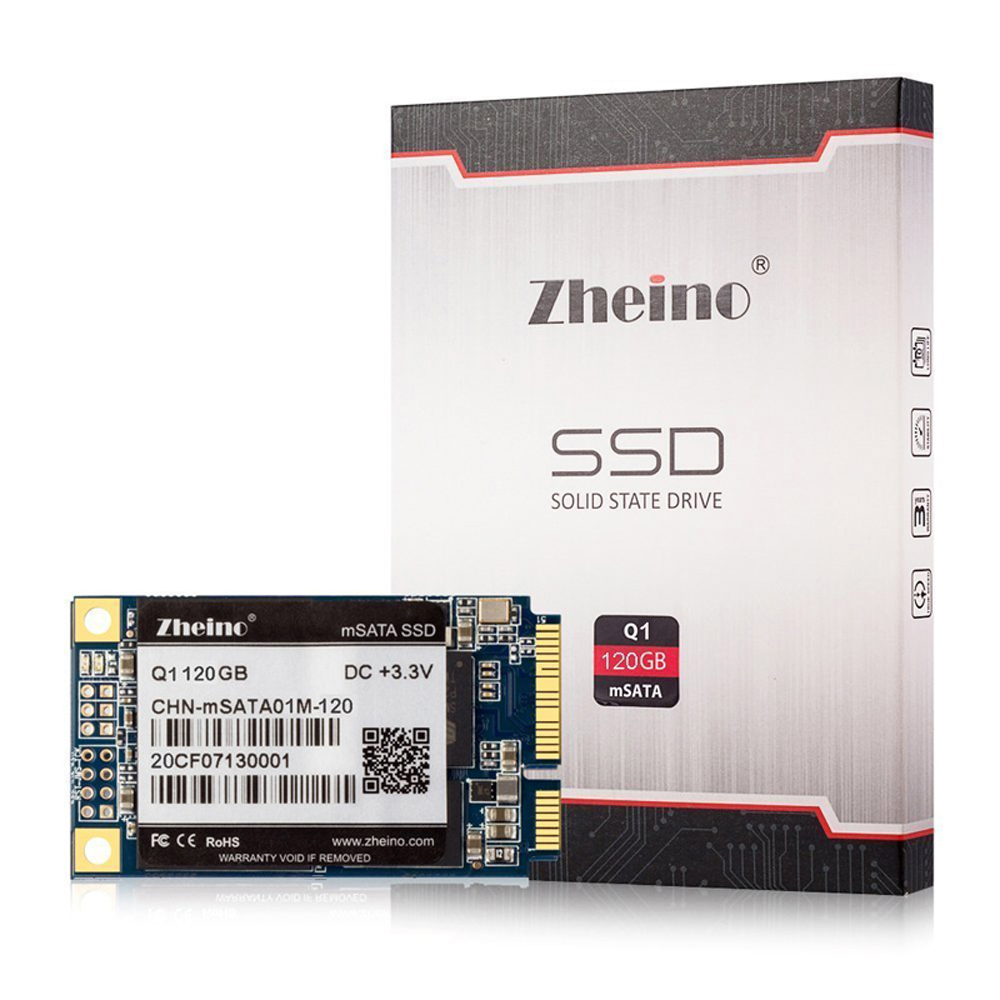

High Speed Q1 Internal SSD mSATA 120G MLC For PC Notebooks 3.3V Input

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATA01M-120
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:



Size: 51*30*4mm Application: Desktop .laptop. Notebook
Chips: SMI2246XT Warranty: 3 Years
Read/Write Speed: 510MB/s-180MB/s Package: Yes
Type: Internal Style: SSD

Description of Zheino Q1 SSD

Fantastic transfer speeds with the SATA III 6Gbps interface to open a application faster.

It is one of the lightest and thinnest SSD with dimension: 30*51*3.5mm/1.18 x 2.00 x 0.14 inches to fit in a wider array of systems.

Work Platform: POS machine, game machine, Advertise machine, Thin client, laptop, notebook and other devices with mSATA interface.

Not suitable for Mini9(Inspiron Mini910) and vostro A90

Not suitable for ASUS Eee PC S101/Eee PC 900/Eee PC 900A/Eee PC 901/Eee PC 1000/Eee PC T91 MT/View PAD

It will be damaged by misusing, So keep it away from water, dirt, and high temperature.


Capacity: 16GB/30GB/60GB/120GB/240GB

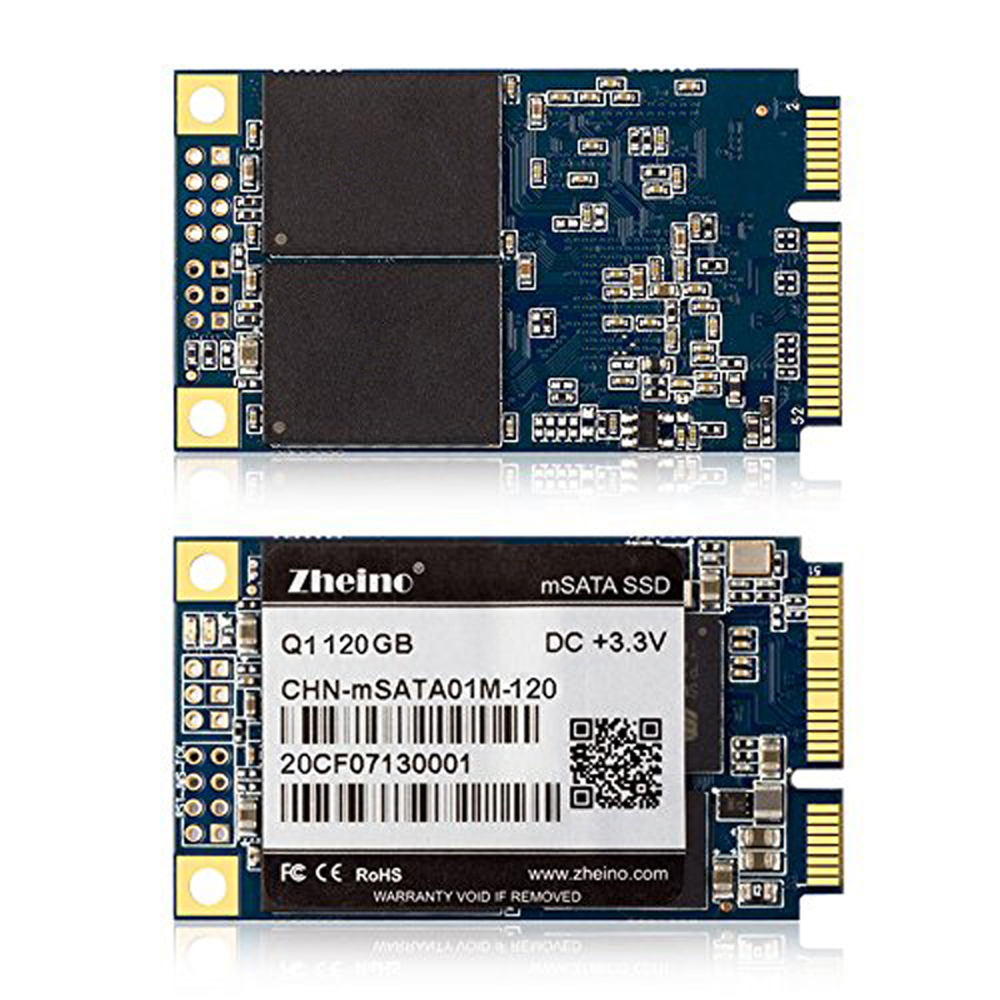

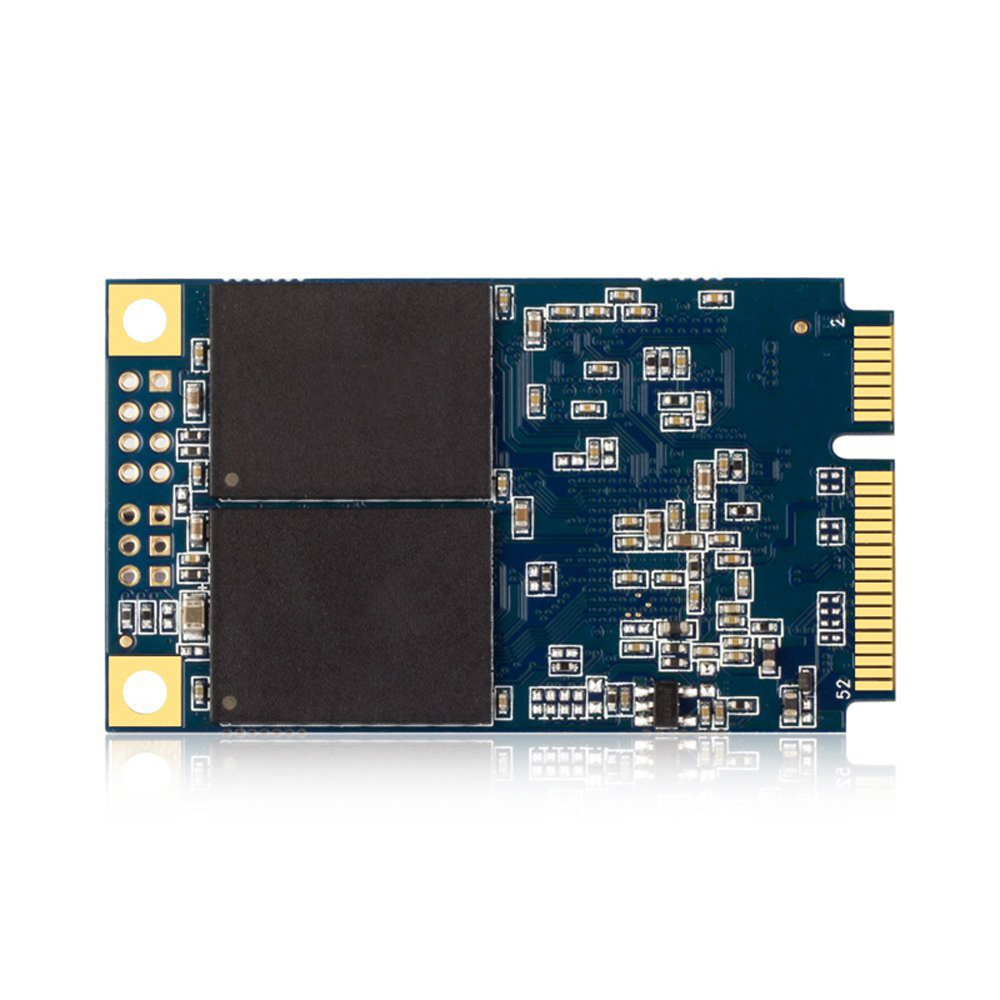

Size: Msata 30*51*3.5mm

Model Number: CHN-mSATA01M-016/030/060/120/240

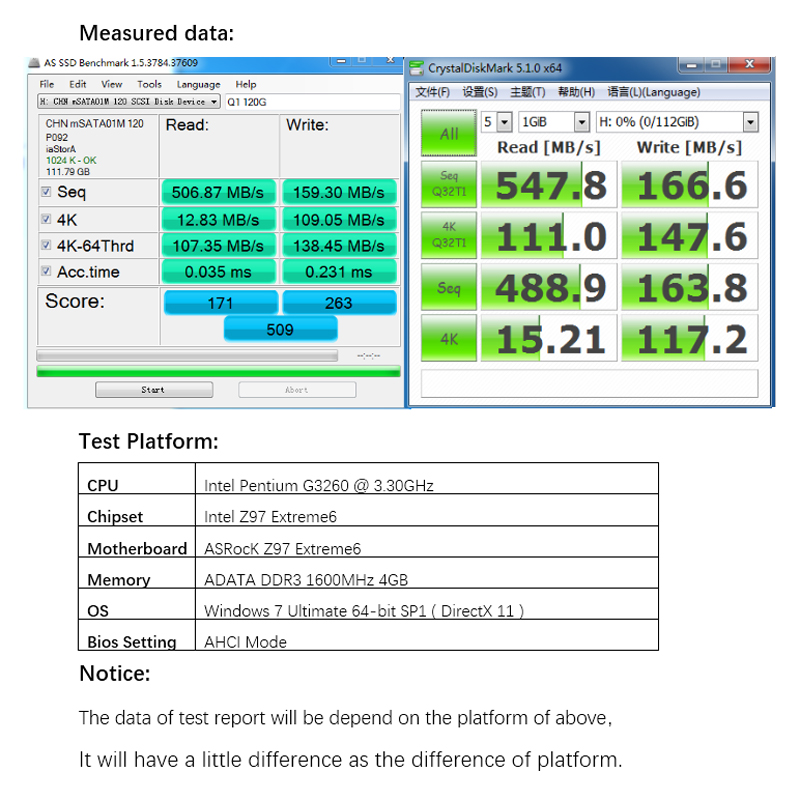

Read Speed:510MB/s

Write Speed:180MB/s

4KB Random Read IOPS:3842-9574

4KB Random Write IOPS:2022-8171

input Voltage:3.3V



Write Endurance: 3000 P/E cycles

Read Endurance: --

Data Retention: More than ten years

MTBF: 3 million hours

ECC: Hardware BCH ECC capable of correcting errors up to 72-bit/1KB

Working Temperature: 0~70

Storage Temperature: -40~85

Controller: SMI2246XT for best performance, value and reliability

Warranty: 3 Years
