Q1 mSATA SSD 240GB 6Gbps SMI2246XT Read 520MB/S For Ultrabook

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATA01M-240
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Term



Interface Type: MSATA NAND Flash: 2D MLC
MTBF: More Than 2,000,000 Hours Certificate: CE,ROHS,FCC
Storage Temperature: -40℃--85℃ Operating Temperature: -20℃--70℃
Dimension: 51*30*4mm Warranty: 3 Years

Q1 2-Inch 240GB SSD mSATA 6Gbps Solid State Drive for Notebooks Tablets and Ultrabooks SMI2246XT/240G

  • mSATA interface - fully compliant with industry standard, easy to fit, guaranteed to work
  • NAND Flash memory based - shock-resistant with low power consumption
  • Supports Intel's SRT - combines capacity advantage of HDD with performance improvements of SSD in dual-storage configuration
  • Supports S.M.A.R.T. - monitors the status of your drive
  • Supports TRIM - maintains maximum performance on compatible operating systems
  • Automatic encryption (AES128-bit) Password at the drive level ensures secure data protection

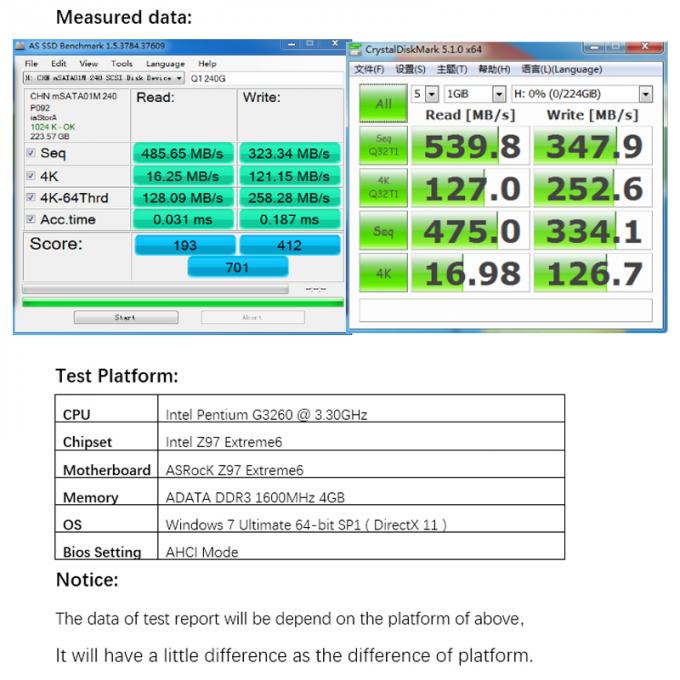

  • Sequential Read/Write: 520MB/s /300MB/s
  • Guaranteed - three-year warranty and free technical support
Item mSATA
Product Model CHN-mSATA01M-240
Interface MSATA III
Flash MLC
SSD Capacity 240GB
Sequential Read Read:520MB/S
Sequential Write Write:300MB/S
ECC BCH ECC 66bits/1KB
Operating Voltage +3.3V( ±5%)
Power Consumption 0.3W(idle)
(Varies by density) 0.57W(active)
Operating Temperature -20°C to 70°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95%
MTBF 2,000,000 Hours
Shock 50G,11ms, half-sine wave
Vibration 3.1G(2-500Hz)
Dimension (mm) mSATA:51*30*4mm
Weight ≤10g
