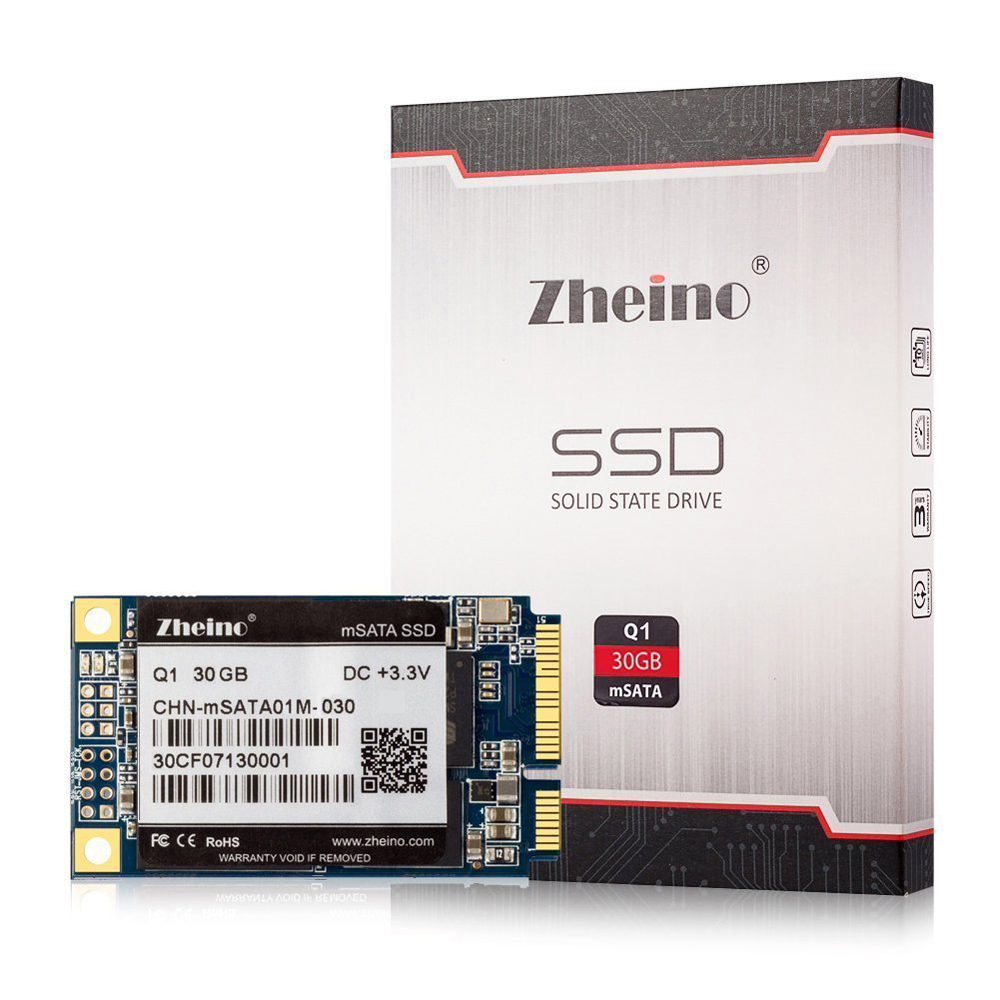

Q1 mSATA SSD 30GB For Mini Laptop 30 * 50mm 3 Year Warranty

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATA01M-030
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:



Application: Laptop,Server,Desktop,ect. Type: Internal
Item Condition: New Read/Write Speed: 258MB/s;46MB/s (for Reference Only)
Controller: SMI2246XT NAND Type: 2D MLC
Package: Yes Warranty Time: 3 Years

Model Q1 30GB
General Form factor mSATA Module
Interface mSATA
Performance Capacity 30GB
Sustained Read (for reference only) 258MB/s
Sustained Write (for reference only) 46MB/s
Random IOPS
4KB Random Read IOPS 5458
4KB Random Write IOPS 2155
Average Access time 0.1ms
Storage Media NAND Flash 2D MLC
Power Consumption input Voltage 3.3V±5%
Idle 0.23W
Active 1.25W
Reliability& Endurance Write endurance 8 years @100GBytes write and erase per day at 32GB
Read endurance unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention 10 years at 25ºC
MTBF 2,000,000hours
ECC support NCQ,TRIM 16bits or 24bits in 1024 bytes
Bad Block Management Auto Bad Block Management in system
Environment Operating Temperature 0~70°C
Non-operating Temperature -40~85°C
Ambient Humidity 5-95%
Available unit Available NO EOL
Physical Dimensions & Weight Height(mm) 3.5+/_0.25
Width(mm) 30+/_0.25
Length(mm) 50.0+/_0.25
Weight(g) 3.5+/_0.5
The read and write speed is limited to this test platform.

Dear Buyer, Please note: This item is not suitable for Mini 9 910 and Eee PC S101 / Eee PC 900 / Eee PC 900A / Eee PC 901 / Eee PC 1000 / Eee PC T91 MT / View PAD
Key Features :
Interface is mSATA
Controller: SMI2246XT for best performance, reliability and value
Warranty: 3 YEARS
Specifications: Product
Type: mSATA Product
Dimensions: 30 * 50mm
Capacity: 30GB
Part Number: CHN-mSATA01M-030
Controller: SMI2246XT
NAND flash memory: 2D MLC
Input voltage: 3.3V
Read sustained: 258MB / s
Write sustained: 46MB / s
4K random Read IOPS 4173
Random 4K Write IOPS 2.042
Warranty: 3 years

Hot reminders: As different test platforms, please allow 15% test data differs.
