Durable Zheino MSATA SSD 256GB M3 Internal MSATA Drive 3D Nand Flash Solid State

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATAM3-256
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:


INQUIRY

Description

Interface Type: MSATA Capacity: 256GB
Nand Flash: 3D Nand Certificate: CE,ROHS,FCC
Storage Temperature: -40℃--85℃ Operating Temperature: -20℃--70℃
Dimension: 50*30*3.5mm Warranty: 3 Years


Zheino mSATA SSD 256GB M3 Internal mSATA Drive 3D Nand Flash Solid State Drive for Mini PC Notebooks Tablets PC



Capacity: 256GB, Interface : mSATA III (6.0 Gbps)

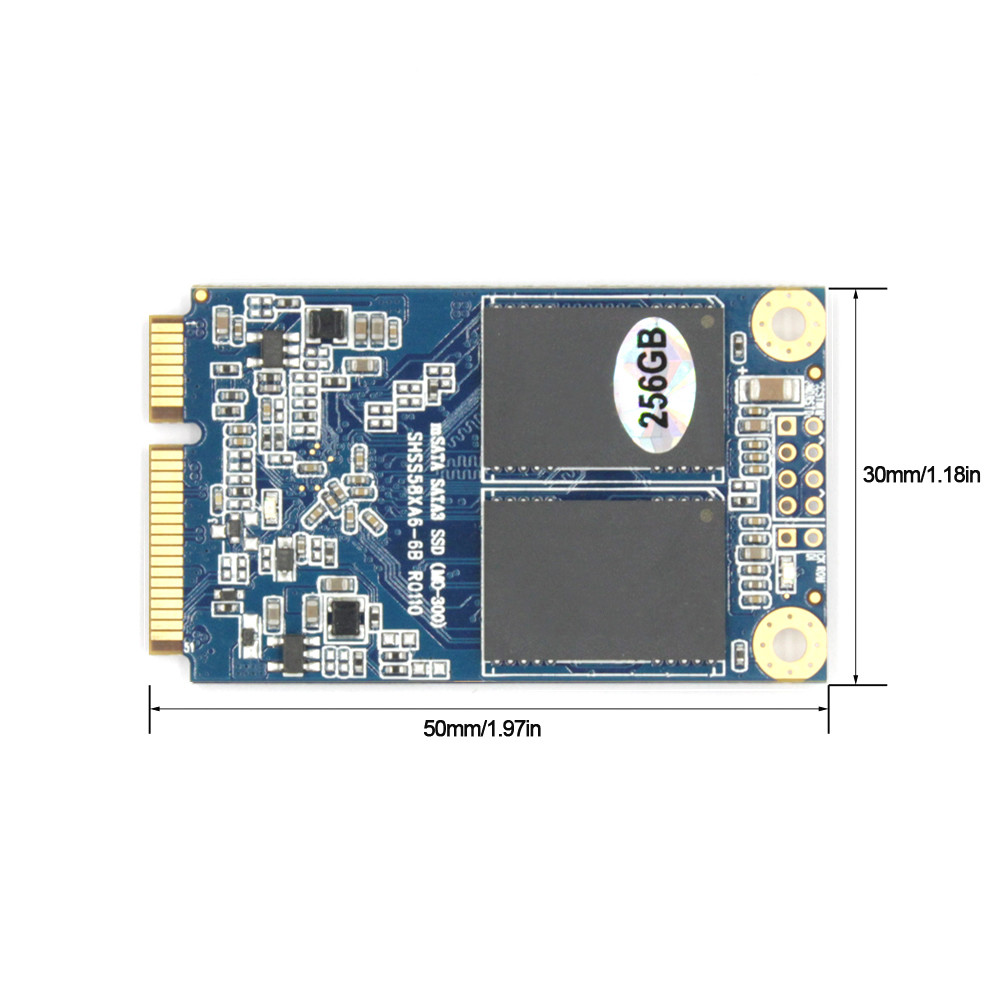

Dimension: 1.18in X 1.96in X 0.14in / 30mm X 50mm X 3.5mm
NAND Flash: 3D Nand
Read/write speed: 540MB/s, 475MB/
Warranty:3 Years



Product Model CHN-mSATAM3-256
Interface mSATA
Flash 3D Nand
SSD Capacity 256GB
Sequential Read Read:540MB/S
Sequential Write Write:475MB/S
ECC BCH ECC 66bits/1KB
Operating Voltage +3.3V( ±5%)
Power Consumption 0.3W(idle)
(Varies by density) 0.57W(active)
Operating Temperature -20°C to 70°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95%
MTBF 2,000,000 Hours
Shock 50G,11ms, half-sine wave
Vibration 3.1G(2-500Hz)
Dimension (mm) mSATA:51*30*4mm
Weight ≤10g



Warm tips
Because there is a different storage-algorithm between manufacture and windows system/other prevailing computer’s system, the actual capacity will be slightly smaller than nominal capacity.
Storage device conversion formula: nominal capacity X93% = actual capacity
